this site gives a visual information about a airbox , which is especially designed for my Bodywear.

Compatibility information:

Remove front ignition coil holder

Ignition coil : new location (as HRC)

Heads Water conducts (Thermostat - case) :substitution (new alloy milled fittings included in Kit )

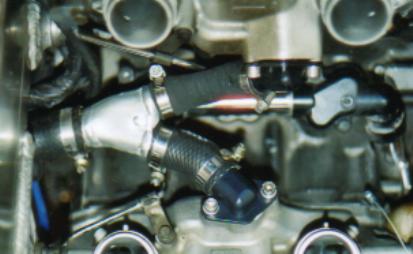

water conduction1.JPG (18640 Byte)

Fit' aswell to orig. and FCR - Carb.

That's all

     ENLARGE HERE

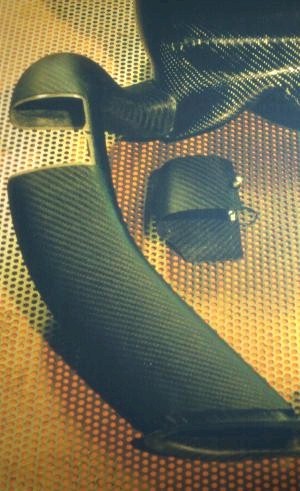

Click to enlarge : detail right Air - Intake (removeable lid for cooling - liquid inspection and filling )

last h2o klappe detail.JPG (31441 Byte)

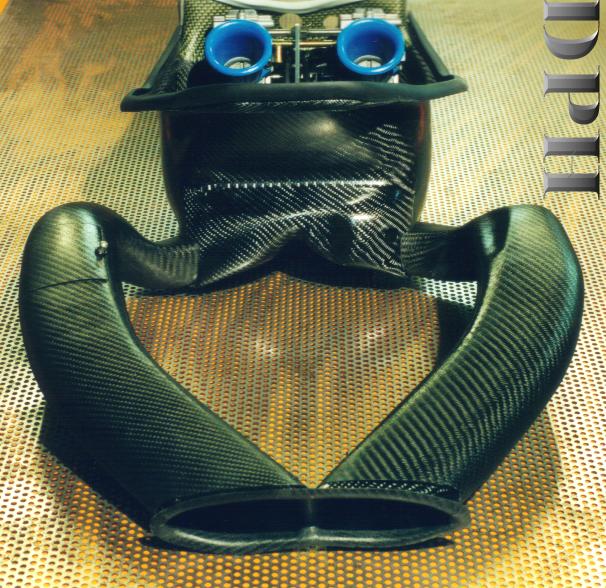

Click to enlarge : Airbox and Intakes , front view (incl. FCR)

last airbox kanäle fcr frontansicht.JPG (90194 Byte)

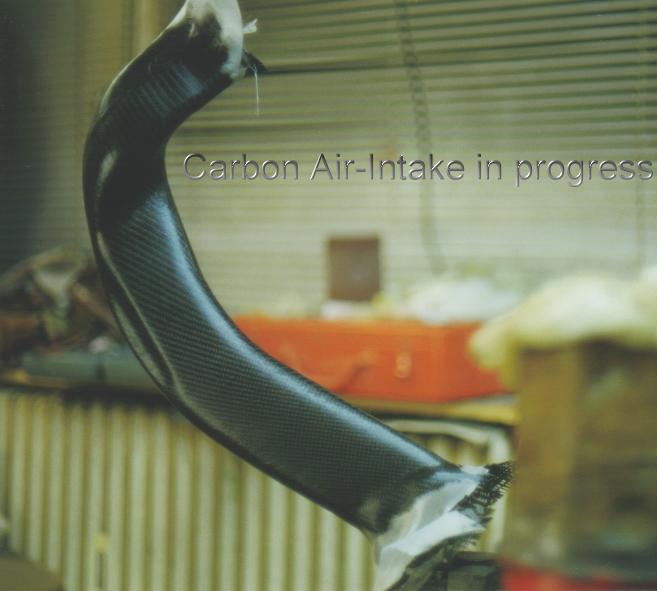

Click to enlarge : Air intake in progress

last carbon airintake in progress.JPG (36579 Byte)

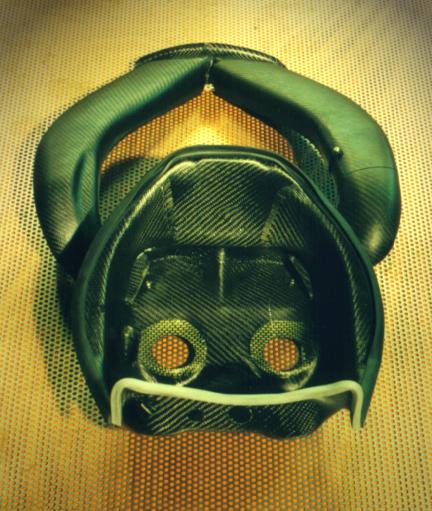

Click : Airbox and Intakes : rear view

last airbox + kanäle rückansicht.JPG (49359 Byte)



Air - Filter : whatever kind of filter you've mounted , get rid of :you can locate airfilter into front of airintakes (included in Kit ) .Very easy to clean ,with mounted bodywear : just take out of intake opening ,clean and put back.

Click to enlarge : Airbox with Orig. Carb.and Carbon connecting Base Plate (substitutes Alloy 900 gr Base Plate , also mounted : Carbon funnel ).Veryvery detailled .
